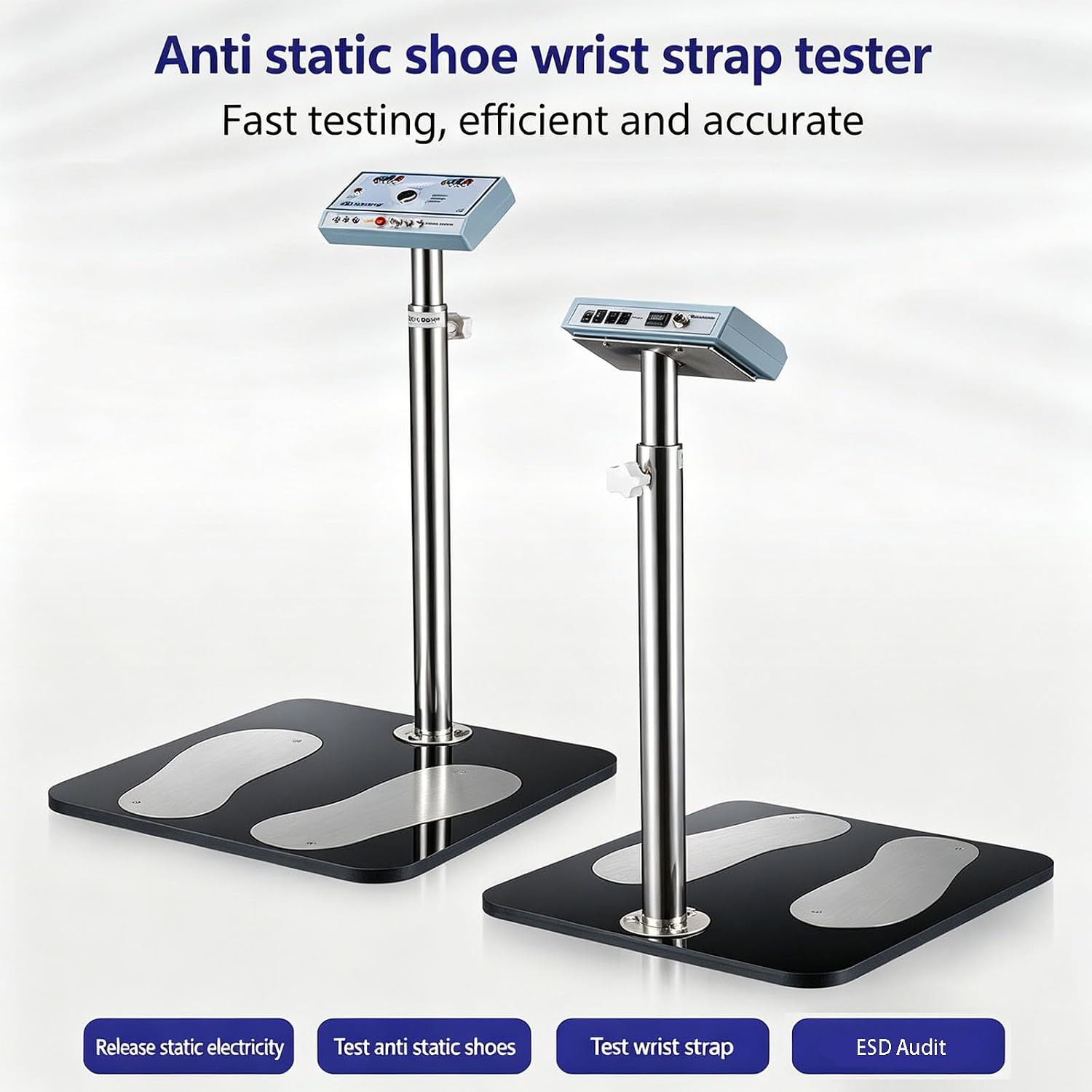

Human Body ESD Tester, Static Control Testing Device with Adjustable Stand and Audible Alarm, Human Body Static Discharge Device for Electronics Workshop

The Human Body Static Tester is specifically designed for Electrostatic Protected Areas (EPAs) within electronic manufacturing, semiconductor fabrication, SMT assembly, and repair workshops, helping enterprises effortlessly pass ESD factory audits. At the start of each workday, employees simply need to press the test button to quickly verify the functionality of their anti-static wrist straps and footwear, as well as their overall body resistance, within seconds—thereby eliminating, at the source, the risk of human-generated static electricity damaging precision components. Product Specifications: Product Name: Human Body Comprehensive Tester Operating Voltage: DC 12V; Current: <1A Instrument Dimensions: 165 × 97 × 40 mm Footplate Dimensions: 400 × 420 × 20 mm Adjustable Stand Height: 700 – 1200 mm Total Weight: 8 kg Left Shoe Threshold: 750 kΩ – 100 MΩ Right Shoe Threshold: 750 kΩ – 100 MΩ Wrist Strap Threshold: 750 kΩ – 10 MΩ Test Accuracy: ±10% (LO) Red: Low Resistance Alarm (PASS) Green: Pass Indicator (HI) Red: High Resistance Alarm BATTERY LOW: Low Voltage Alarm Package Contents: Human Body Comprehensive Tester × 1 Accessories × 1 User Manual × 1

• ✨ Precise Anti-Static Measurement — This dual-foot strap tester offers rapid response times with zero waiting, delivering precise and reliable measurement results. Static values ​​are displayed clearly at a glance, providing a solid basis for evaluating anti-static effectiveness and enabling the efficient completion of static testing procedures.
• ✨ Comprehensive ESD Detection — This professional human body static tester supports the independent or simultaneous testing of anti-static wrist straps, as well as left and right anti-static footwear. It enables a comprehensive, one-step inspection of personal ESD protective gear, effectively identifying issues such as poor grounding or excessive resistance.
• ✨ Smart Touch & Instant Feedback — Equipped with sensitive touch buttons for simple, one-touch operation—eliminating the need for complex configurations—the device features voice prompts and combined audio-visual alarms. This allows for the rapid determination of pass/fail results, thereby significantly boosting inspection efficiency within the workshop environment.
• ✨ Adjustable Design — The stand height is fully adjustable to accommodate the varying needs of different users and workbench layouts. A compact control unit paired with a sturdy base plate ensures operational stability. The overall structure is meticulously engineered to be perfectly suited for daily use within controlled environments.
• ✨ Wide-Ranging Applications — Widely applicable across various ESD-protected zones—including electronics assembly workshops, petrochemical plants, pharmaceutical facilities, printing houses, and textile factories—this device provides comprehensive, end-to-end static safety protection for industrial production processes.
